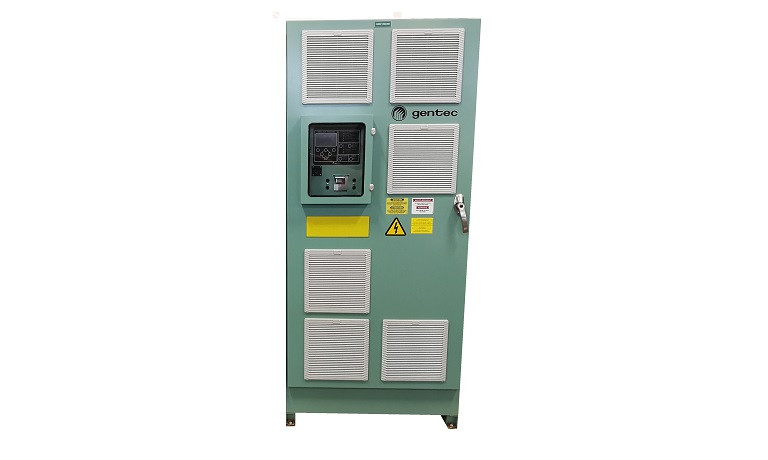

OND4 - 5KVA to 80 KVA single-phase & three-phase inverter


Gentec’s industrial inverter systems have been designed to provide the most reliable sinusoidal voltage to critical loads.

These three-phase inverters are of the ''online'' type. Pulse Width Modulation (PWM) technology is used to control insulated-gate bipolar transistors (IGBT).

The system is equipped with a very quiet inverter (DC/AC converter), a static switch, and a manual bypass switch to isolate the system during maintenance.

A microprocessor controller carries out PWM waveform generation, and voltage synchronization and regulation, even when the inverter is powering non-linear loads. In addition, it carries out inverter measurement (voltmeters, ammeters, frequency meter) and monitoring (comprehensive alarm system).

  • Ideal for utility and heavy industry substations
  • Proven technology
  • Easy to maintain
  • Life expectancy greater than 25 years
  • Customer support from a comprehensive team of engineers and technicians.
  • Input voltage: 110, 125, 220, 230 or 250 V DC
  • Output voltage: 208, 380, 480 or 600 V AC, 60 Hz, three-phase (50 Hz available as an option)
  • Output power: 5 KVA to 80 KVA
  • Very quiet (65 dBA)
  • Alarm threshold can easily be remotely adjusted using the communication ports on the device or on-site using a laptop computer with a web browser to connect to its web server
  • Digital meters (DC voltmeter, DC ammeter, AC voltmeter, AC ammeter, frequency meter, etc.)
  • Redundant (master-slave) inverters available; freestanding cabinets, cold laminated steel, 2.6 or 3.0 mm thick, type 1
