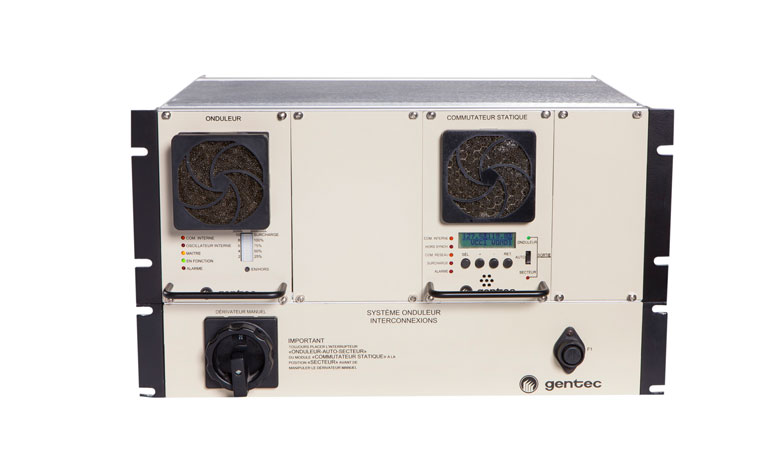

OND3 - 1 KVA rackmount inverter

  • Ideal for utility and heavy industry substations
  • Customized products available
  • Easy to maintain
  • Life expectancy greater than 25 years
  • Customer support from a comprehensive team of engineers and technicians

These inverters are of the ''online'' type. Pulse Width Modulation (PWM) technology is used to control insulated-gate bipolar transistors (IGBT).

The system is equipped with a very quiet inverter (DC/AC converter), a static switch, and a manual bypass switch to isolate the system during maintenance.

A microprocessor controller carries out PWM waveform generation, and voltage synchronization and regulation, even when the inverter is powering non-linear loads. In addition, it carries out inverter measurement (voltmeters, ammeters, frequency meter) and monitoring (comprehensive alarm system).

  • Ideal for utility and heavy industry substations
  • Product tried-and-tested on hundreds of installations!
  • Easy to maintain
  • Life expectancy greater than 25 years
  • Customer support from a comprehensive team of engineers and technicians.
  • Input voltage: 24, 48, 110, 125, 220 or 250 V DC
  • Output voltage: 120 V AC, 60 Hz, single-phase (50 Hz available as an option)
  • Output power: 1 KVA
  • Very quiet (60 dBA)
  • Very easy on-site system set-up (alarms, automatic modes, etc.) thanks to the LCD screen and control buttons
  • Many measurements available on LCD screen (DC voltmeter, DC ammeter, AC voltmeter, AC ammeter, frequency meter, etc.)
  • Redundant inverters available
  • Standard 19-inch or 23-inch cabinets
